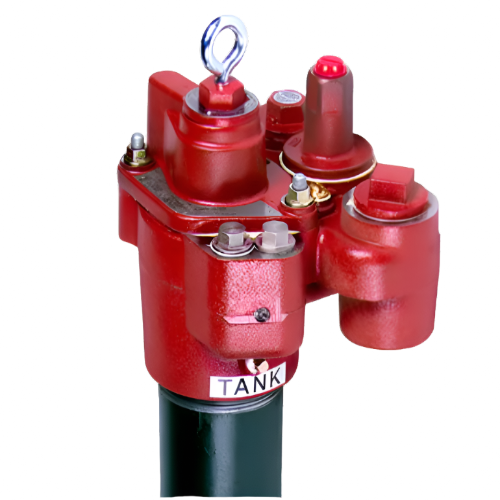

• This image shows a close-up of the Red Jacket submersible turbine pump (STP) head. Key features: 1. Predominantly red metal construction 2. Central cylinder with silver lifting hook 3. Multiple ports and fittings 4. "TANK" label visible 5. Various bolts and valves 6. Small section of black pump shaft visible below This pump head is designed for use in underground fuel storage systems, with its complex assembly of components allowing for efficient fuel transfer and system management.

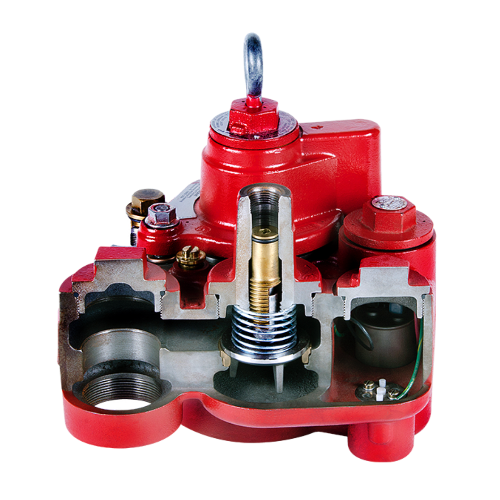

  • The image shows a cross-section of a Red Jacket submersible turbine pump's packer manifold assembly. Key features include: Red exterior Cutaway view of internal parts Central brass check valve with spring Multiple chambers and ports Threaded connections Top lifting eye External bolts and fittings Internal seals and gaskets This view showcases the complex engineering of the packer manifold, critical for controlling fuel flow and ensuring safe operation in underground fuel storage systems.
1 3

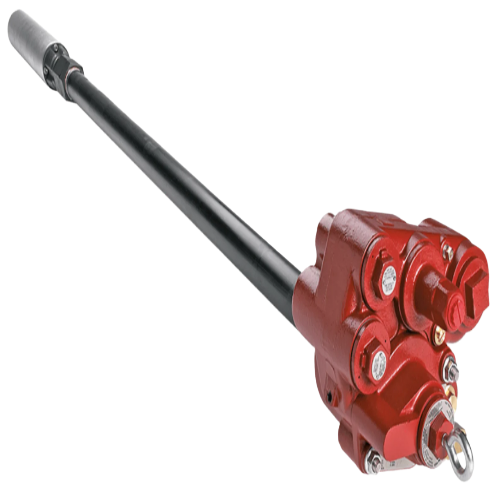

Red Jacket 3/4hp Replacement Motor - UMP75U

Red Jacket 3/4hp Replacement Motor - UMP75U

$1,034.00 USD
$1,034.00 USD
Sale Sold out

Red Jacket® STP UMP75U1: The Gold Standard in Submersible Turbine Pumps

Discover the unparalleled performance of the Red Jacket® STP UMP75u1, the cornerstone of efficient fueling infrastructure. As the world's most widely installed submersible fuel pump, this model sets the benchmark for high-throughput, high-reliability fueling applications.

Why Choose the Red Jacket® STP UMP75u1?

  • Unmatched Efficiency: Delivers the highest fuel flow rates with the lowest power consumption, optimizing your fuel dispensing operations.
  • Legacy of Excellence: Since 1878, Red Jacket has been synonymous with quality and reliability in the fuel pump industry.
  • Advanced STP Design: Features a cutting-edge packer manifold for easy installation and safe servicing.
  • Versatile Configuration: Available in ¾HP to 2HP motor configurations with fixed or Quick Set® adjustable lengths.

Superior Motor Design for Peak Performance

  • Increased Flow Rate: Up to 5% improvement due to enhanced stator and receptacle housing design.
  • Energy Efficient: 8% reduction in power consumption compared to previous models.
  • Universal Compatibility: Simplify your inventory with fewer parts to stock.
  • Enhanced Reliability: Upgraded insulation and improved bearing design extend motor life.
  • Safety First: Operates at temperatures up to 125 degrees cooler than competitors, with enhanced flame-proof standards.

Advanced Packer Manifold: Installation Made Simple

  • Built-in Isolated Contractor's Box: Ensures electrical connections are separate from fuel paths.
  • Quick Assembly: No yoke adjustments required, speeding up installation.
  • Automatic Safety Features: Electrical yoke disconnects and fuel drains back upon removal of extractable bolts.
  • Innovative Check Valve: "Open" setting facilitates easier line tests and servicing.

Specifications at a Glance

  • Fuel Compatibility: 100% Diesel, 100% Gasoline, up to 15% Methanol/Ethanol, up to 20% MTBE/ETBE/TAME
  • Motor Options: From 3/4 HP to 2 HP, 60 HZ, 1-phase
  • Installation Depth: Fixed (3.5' to 19') or Quick Set Adjustable (74.5" to 225")
  • Environment: Suitable for Class 1, Group D atmospheres and low corrosion environments
  • Certifications: UL and cUL listed for various fuel types

Elevate your fueling station's performance with the Red Jacket® STP UMP75u1. Built to last, designed for efficiency, and engineered for the future of fuel dispensing.
